MANUFACTURER:	Shallco
MANUFACTURER ITEM #:	502D-300

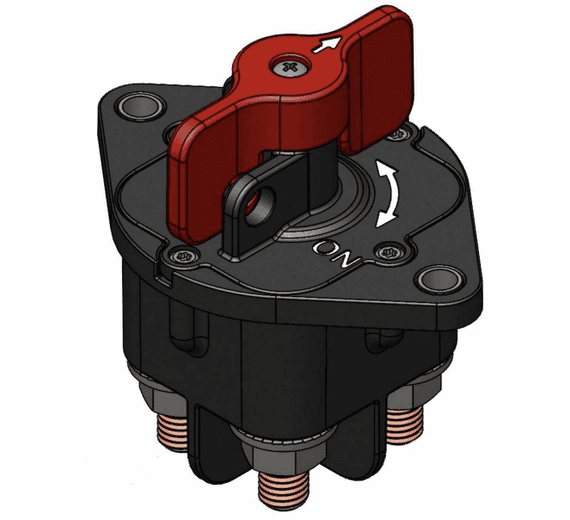

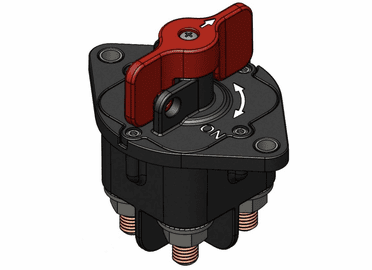

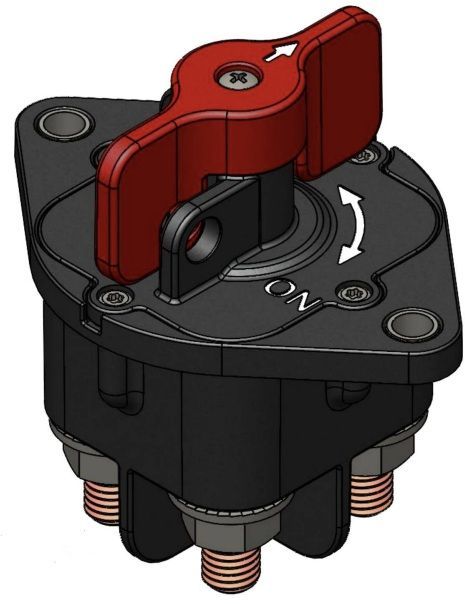

DESCRIPTION:    Lockout Battery Disconnect

APPLICATIONS:   The Shallco 601D-500 is engineered for reliable manual disconnection of any battery powered electrical system. Its rugged, single-piece housing secures terminals and cabling firmly to the chassis, ensuring long-term durability.

The handle is directly linked to the positive-break, double-pole contact system, guaranteeing safe and dependable interruption. For high-current applications, the unit offers clearly marked terminals-1a and 2a for one circuit, and 3b and 4b for the second making installation straightforward and connections highly reliable.

DESIGN:    Sealed, double-pole, positive-break contact system

HOUSING:    Single-piece construction for secure terminal and cable retention to chassis

HANDLE:    Skirted design for dust and moisture protection 90° detented rotation for clear tactile feedback Standard OFF-position lockout/tagout capability

Contacts:    Direct mechanical linkage between handle and double pole contact system for reliable interruption

TERMINALS:    Circuit 1: Terminals 1a, 2a Circuit 2: Terminals 3b, 4b

Clearly identified for simplified installation and maintenance Performance: Engineered for high-current, high-reliability applications

RATING:    Continuous 500Amp, 5-100 Volt DC, DPST Lockout Red Knob

TEMPERATURE RATING:    –40°C to 85°C

SEALING: IP67

TERMINATION:    M-10 Terminal
