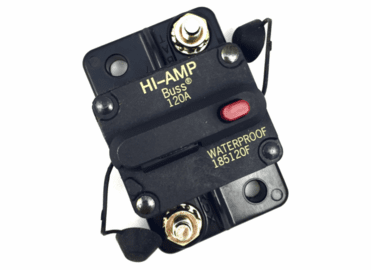

SINGLE POLE THERMAL TYPE BREAKERSRATING: 25-150A, 30Vdc; 42Vdc Nom (Series 184 & 185)
INTERRUPT RATING: 3000A @ 30Vdc
OPERATING TEMPERATURE RATING: -40°C to +85°C
STORAGE TEMPERATURE RATING: –30°F (–34°C) to 300°F (149°C)
MATERIALS: Black UL-rated 94V0 thermoset plastic. Thermoplastic elastomer stud insulators are provided on covered units with F-style (surface-mount) bases
MARKING: Standard marking includes amp ratings and part numbers. Custom markings also available.
TERMINATION: 1/4-28 threaded studs
OUTPUT WIRE SIZE: #10-16 AWG
TORQUE RATING: 50 in-lbs (5.6N•m) max
MOUNTING TORQUE RATING: Panel or surface-mount options; 50 in-lbs (5.6N•m) max. Threaded insert option has a max torque of 25 in-lbs (2.8N•m).
INGRESS PROTECTION RATING: IP67
FEATURES | OPTIONS: Series 184 & 185 have a unique reset mechanism which provides visual indication of tripped condition. Series 185 also features a push-to-trip option
COMPLIANCES: SAE J1625; ABYC E-11; CE; SAE J1171 (ignition protected) https://www.connectorconcepts.comhicibr80amma1.html $32.19
