Home  |  Battery Disconnect  |  Shallco Disconnect  |  Battery Switches  |  48VDC 300A Lockout Battery Switch
Shallco
Battery Switches
48VDC 300A Lockout Battery Switch
MANUFACTURER: Shallco
MANUFACTURER ITEM #: 500SL-300
DESCRIPTION:    Lockout Battery Switch APPLICATIONS:    The heavy-duty construction provides mounting location versatility and permits DC junction block connections that will remain tightly secured. It is heat tolerant and is sealed against intrusion from the elements. Expect long-life, maintenance free operation, even when used as a master battery disconnect switch or solar battery switch. They are extensively factory tested and come with a one-year factory warranty. RATING:    Continuous 300Amp, 48 Volt DC, Single Pole, 1"-20 Bushing Mount, M-10 Terminal, Hardware, 90 degree throw, Red Knob with Lockout Feature TEMPERATURE RATING:    40C to 85C SEALING: IP67 TERMINATION:    M-10 Terminal OVERLOAD:    750A - 180Sec. / 1500A - 30Sec.

https://www.connectorconcepts.com4830lobasw.html
$50.00
click image to enlarge

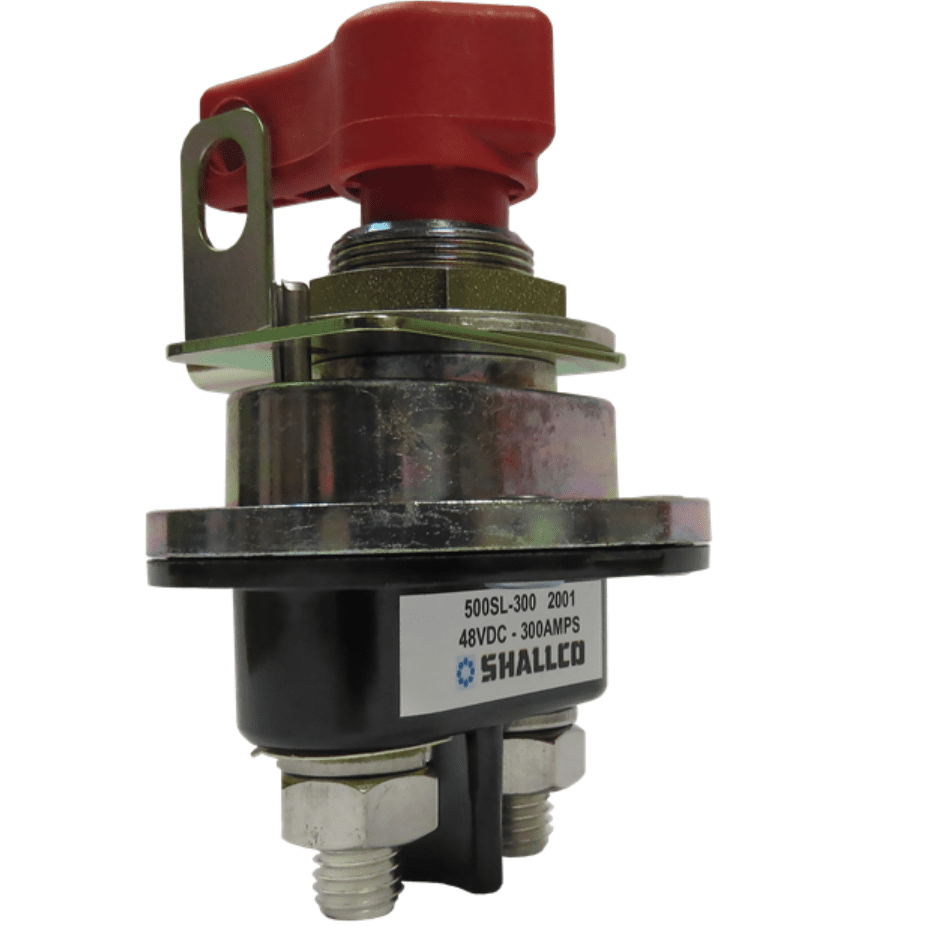

48VDC 300A Lockout Battery Switch

Item Number:
500SL-300
Manufacturer:
Shallco
Quantity Available:
24
DATA SHEET
Price:
$50.00
Quantity:


Product Description

MANUFACTURER: Shallco
MANUFACTURER ITEM #: 500SL-300


DESCRIPTION:    Lockout Battery Switch

APPLICATIONS:    The heavy-duty construction provides mounting location versatility and permits DC junction block connections that will remain tightly secured. It is heat tolerant and is sealed against intrusion from the elements. Expect long-life, maintenance free operation, even when used as a master battery disconnect switch or solar battery switch. They are extensively factory tested and come with a one-year factory warranty.

RATING:    Continuous 300Amp, 48 Volt DC, Single Pole, 1"-20 Bushing Mount, M-10 Terminal, Hardware, 90 degree throw, Red Knob with Lockout Feature

TEMPERATURE RATING:    40C to 85C

SEALING: IP67

TERMINATION:    M-10 Terminal

OVERLOAD:    750A - 180Sec. / 1500A - 30Sec.
